Heat Treating & Forging
Interested in extending the life of your furnace? We can improve your heat treating and forging process
Heat treating and forging processes often involve thermal shock and mechanical abrasion. With cutting-edge, proven products like ARMORMAX® and unmatched technical and sales support, we can help extend the life of your furnaces, improve efficiency and help reduce maintenance costs.
See how Allied can benefit you with monolithic and precast refractory solutions tailored to heat treating and forging.
Car Bottom Furnace
Solutions for all parts of the car bottom furnace, from subhearth to pier blocks. We supply a multitude of products guaranteed to help maximize furnace performance.
|
||

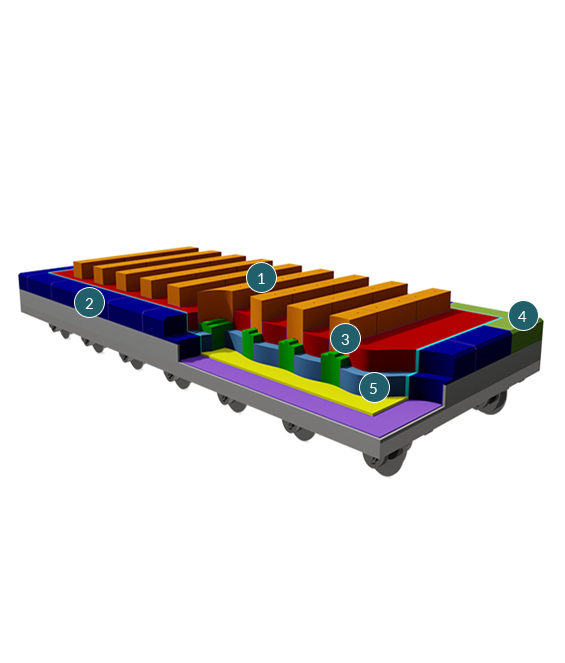

Car Bottom Furnace(Heat Treating)
1Pier Blocks
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO FSM
Fused silica-mullite, shock-resistant, low-cement pump/vibration castable
2Perimeter
TUFF-FLO 50
50% alumina low-cement pump/vibration castable
CAST 2550 LI C
1400°C (2550°F) large aggregate, abrasion resistant, low iron,conventional vibration castable
3Hearth
DRI-VIBE® 434A
55% Al203 moisture-free hearth refractory with low-temperature heat-set bond
DURACON 28
1540°C (2800°F) low cement, high strength vibration castable
TUFF-FLO 50
50% alumina low-cement pump/vibration castable
4Perimeter
Perimeter
70% Al203 low-cement, high-needle bearing, shock-resistant pumpIvibration castable
5Subhearth
MATRILITE 24AC
2450°,77 pcf lightweight castable
INSULMIX® 26LI
2600°, 90 pcf low-iron lightweight castable
▲ Collapse
|
||
|
||
Car Bottom Furnace(Forging)
1Pier Blocks
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO FSM
Fused silica-mullite, shock-resistant, low-cement pump/vibration castable
2Perimeter
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO 60A
Andalusite-containing, low-cement, high-strength, shock-resistant pump/vibration castable
DURACON 32
60% Al203 low-cement, high-strength vibration castable
3Hearth
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
DRI-VIBE 434A
55% Al203 dry-vibratable
DURACON 32
60% Al203 low-cement, high-strength vibration castable
TUFFCRETE 70X
70% Al203 pump-castable
TUFF-FLO 60A
Andalusite-containing, low-cement, high-strength, shock-resistant pump/vibration castable
4Perimeter Zone
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
5Subhearth
MATRILITE 24AC
2450°,77 pcf lightweight castable
INSULMIX® 26LI
2600° ,90 pcf low-iron lightweight castable
▲ Collapse
|
||
Box Furnace
An extensive selection of products to serve the many sections of box-type furnaces. We are equipped to optimize your furnace performance with proven successful refractories and precast shapes.
|
||

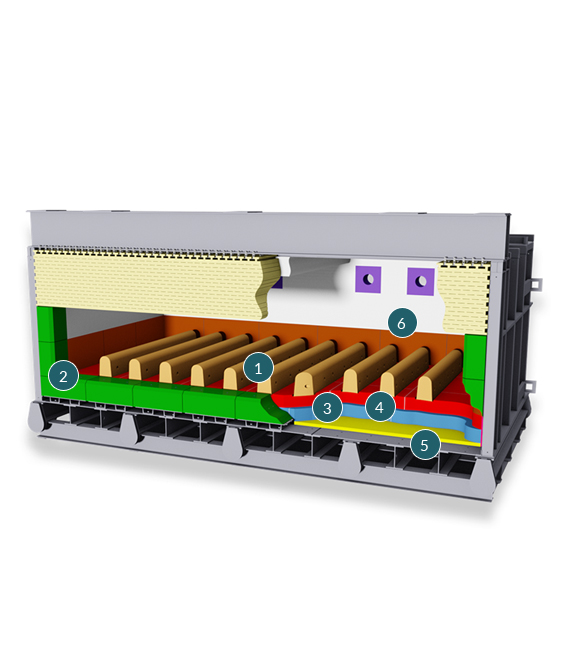

Box Furnace(Heat Treating)
1Pier Blocks
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pumpfvibration castable
TUFF-FLO FSM
Fused silica-mullite, shock-resistant, low-cement pump/vibration castable
2Jambs/Sill
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO 60A
50% Al203 low--cement pump/vibration castable
PS SUPER PLASTIC
44% Al203 3100O air-set plastic
3Hearth
DRI-VIBE 434A
55% Al203 dry-vibratable
DURACON 32
60% Al203 low--cement, high-strength vibration castable
LCF 798A
Andalusite-based, shock-resistant, low-cement vibration castable
TUFF-FLO 50A
50% Al203 3000° pump-castable
CAST 2550 LI C
1400°C (2550°F) large-aggregate, abrasion-resistant, low-iron,conventional vibration castable
4Subhearth
MATRILITE 24AC
1345°C (2450°F) lightweight castable
INSULMIX® 26LI
1425°C (2600°F) low-iron, lightweight castable
5Curb Walls
TUFF-FLO 50
50% Al203 low-cement pump/vibration castable
PS SUPER PLASTIC
44% Al203 super duty, air-set ramming plastic
6Burner Blocks
LCF 798A
Andalusite-based, shock-resistant low-cement vibration castable
BRICKMIX 81
80% Al203 air-set, volume-stable ramming plastic
KAST TECH 60
56% Al203 low-cement vibration castable with high-strength retention
MATRIPHOS 85AC
81% Al203 phos-bonded construction--grade ramming plastic
▲ Collapse
|
||
|
||
Box Furnace(Forging)
1Pier Blocks
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pumpfvibration castable
TUFF-FLO FSM
Fused silica-mullite, shock-resistant, low-cement pump/vibration castable
2Jambs
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO 60A
50% Al203 low--cement pump/vibration castable
PS SUPER PLASTIC
44% Al203 3100O air-set plastic
3Hearth
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock resistant pump/vibration castable
DURACON 32
60% Al203 low-cement, high-strength vibration castable
DRI-VIBE 434A
55% Al203 dry-vibratable
TUFFCRETE 70X
70% Al203 3000° pump-castable
TUFF-FLO 50
TUFF-FLO 60A
Andalusite-containing, low-cement, high-strength, shock resistant pump/vibration castable
4Sill
ARMORMAX® 70SR
70% Al203 low-cement, high-needle bearing, shock-resistant pump/vibration castable
TUFF-FLO 60A
Andalusite-containing, low-cement, high-strength, shock-resistant pumpivibration castable
TUFF-FLO 50
50% Al203 low--cement pump/vibration castable
5Subhearth
MATRILITE 24AC
1345°C (2450°F) lightweight castable
INSULMIX® 26LI
1425°C (2600°F) low-iron, lightweight castable
TUFFCRETE 47
143 pcf, 2800° dense castable
6Curb Walls
TUFF-FLO 50
50% Al203 low-cement pump/vibration castable
PS SUPER PLASTIC
44% Al203 super duty, air-set ramming plastic
7Burner Blocks
LCF 798A
Andalusite-based, shock-resistant low-cement vibration castable
BRICKMIX 81
80% Al203 air-set, volume-stable ramming plastic
KAST TECH 60
56% Al203 low-cement vibration-castable with high-strength retention
MATRIPHOS 85AC
81% Al203 phos-bonded construction--grade ramming plastic
▲ Collapse
|
||
Induction Heating
Severe abrasion and thermal cycling are no match for Allied's line of specialized refractories for induction coils. We have the answers to your needs, providing several castables that stand up to these harsh conditions.
|
||
|
COIL CAST FS
Fused silica-mullite, 2mm and finer, low-cement conventional castable for casting coils with narrow turn spacing
COIL CAST FS FAST
Fused silica-mullite, 2mm and finer, low-cement conventional castable for casting coils with narrow turn spacing
CAST 217 FS
2mm, fused silica-mullite coil castable
CAST 217 FS FINE
Fine grain version of CAST 217 FS
COIL CAST M
2.5mm, mullite-based coil castable
COIL END BOARDS
QUICK-CAST® 62
66% Al203 low-cement, all-purpose, nigh-strength vibration castable for end boards, structural components
TUFFLOOR®
High-strength conventional castable, produces smooth surface finish for end boards
▲ Collapse
|
||

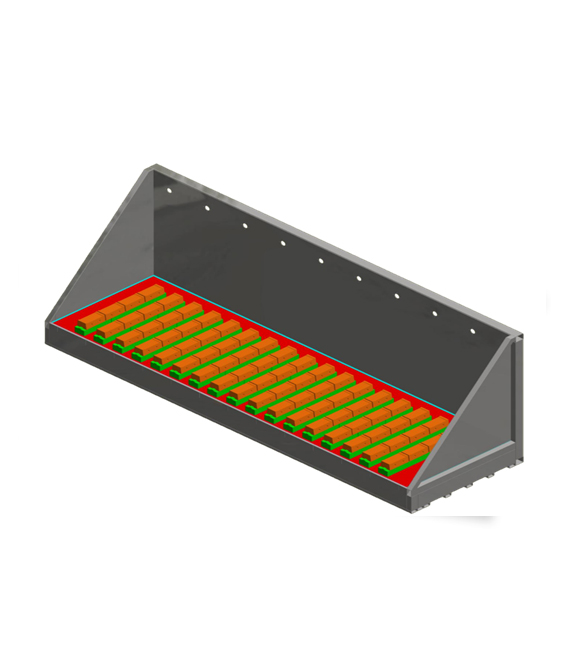

Tip-Up Furnaces
Our innovative product solutions include a wide range of specialized castable refractories and customized precast shapes. Trust our advanced refractory products for your hearth and subhearth requirements.
|
||
Area
Top Products
Hearth
DURACON 32
TUFF-FLO 60A DRI-VIBE® 434A Subhearth
MATRILITE 24AC
DRI-LITE® 79 AL-M Pier block
ARMORMAX® 70 SR
TUFF-FLO FSM ▲ Collapse
|
||
